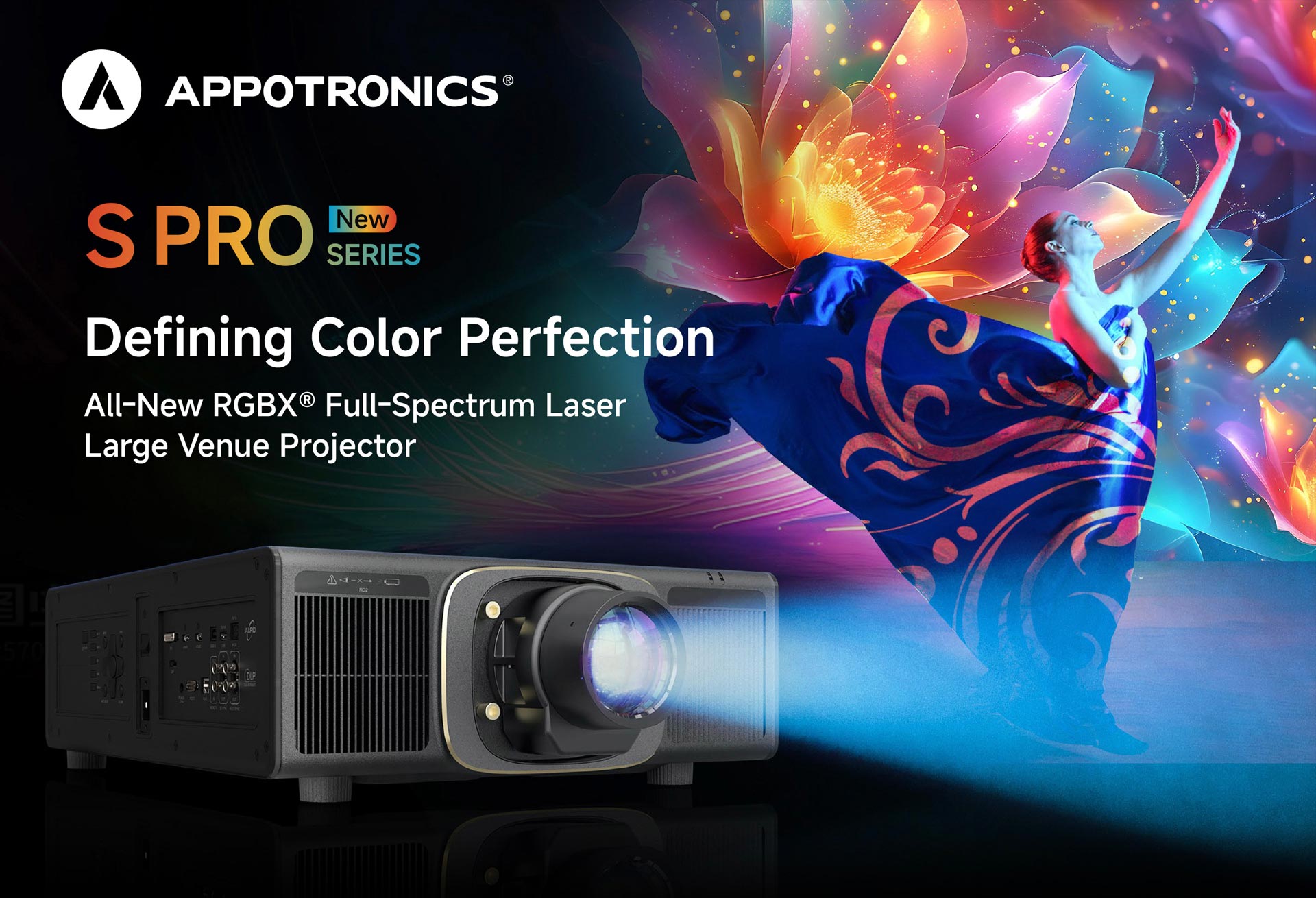

S Pro Series
· ALPD®5.0 RGBX® Full-Color Laser · 4K+ (3,840x2,400) WUXGA (1,920x1,200)

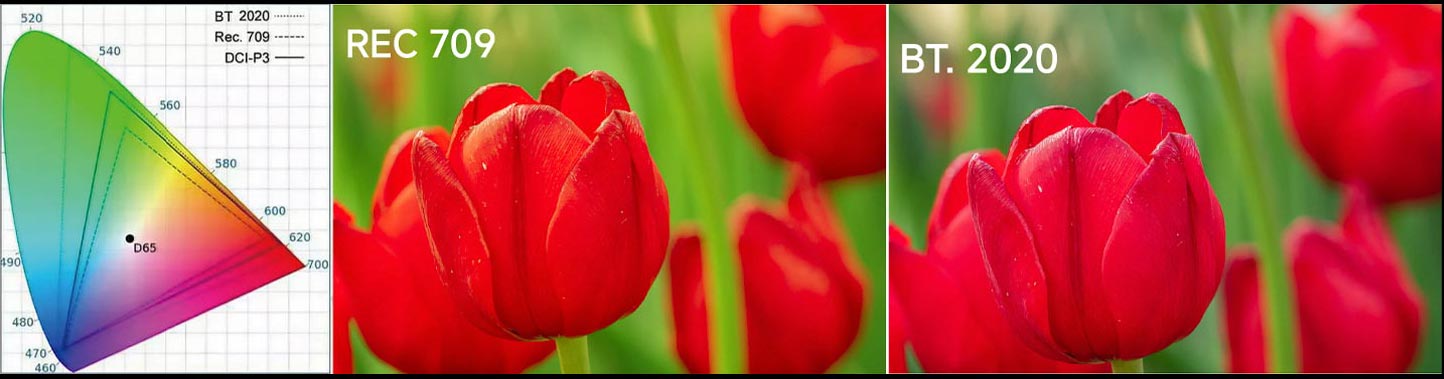

· 120% Rec.709, 100% DCI-P3, 90% BT.2020 · 9 Optional Lenses Throw Ratio 0.36~6.8:1

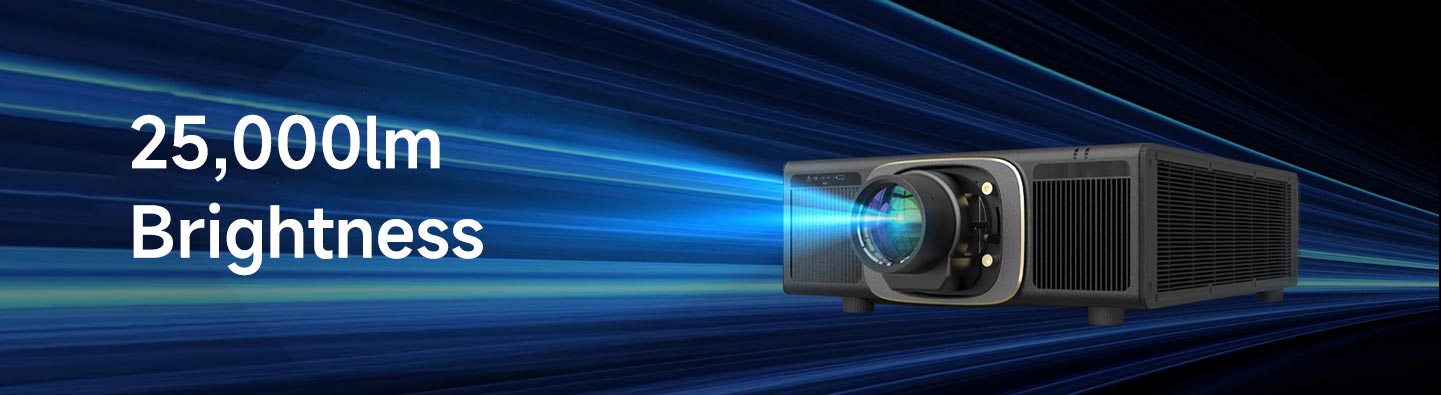

4K Professional Projectors with 20,000+ Lumens
S Pro delivers speckle-free and color-fringing-free performandce at 20,000 lumens designed to meet diverse professional needs and provideCustomers with premium high-brightness projection solutions.
With optional 4K/WUXGA resolution, this product meets theneeds of various scenarios, delivering crystal-clear images and showcasing every detail with stunningprecision
This technology intelligently identifies and processes the higghlights and shadows of the content being displayed By expanding the dynamic range, it ensures that bright areais are not overexposed and dark areas retain detail,resulting in more realistic, vibrant, and richly detailed imagess. This delivers the ultimate visual experience.
With Adaptive HDR and HDR10 support, this technology bringscontent to life with unparalleled clarity, detail,and realism, offering the best possible visual experience.

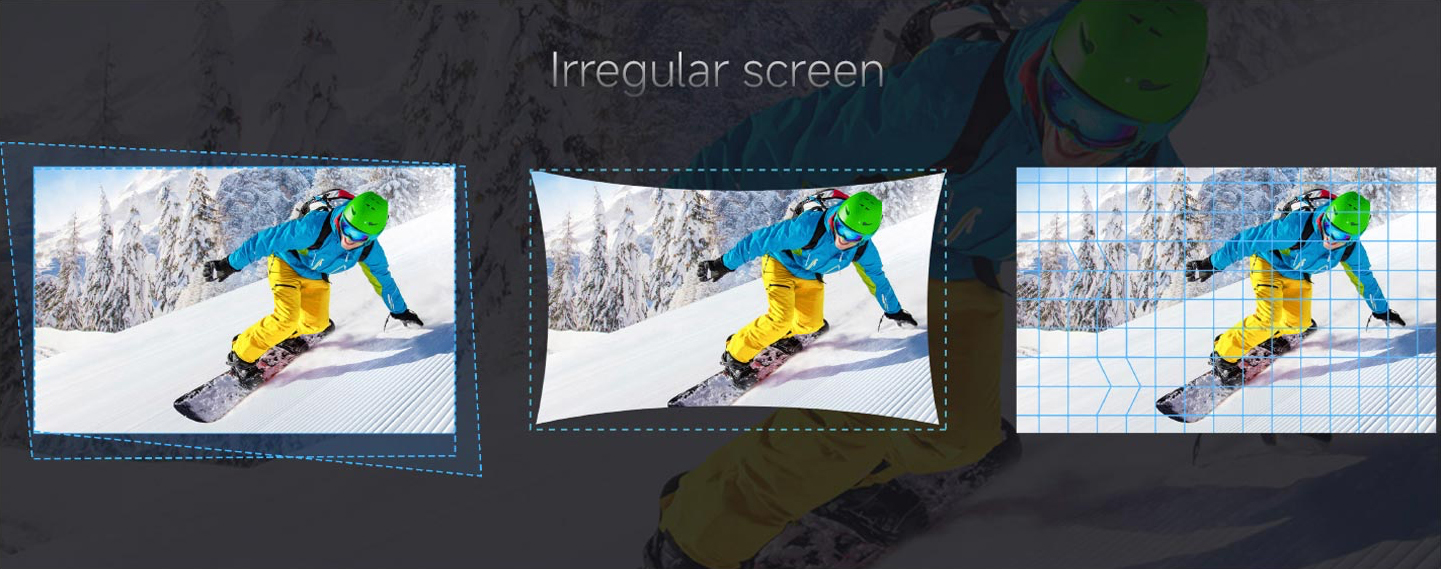

Featuring keystone correction, curved surface correction,and multi-point correction, this projector adapts to various projection angles and imaging surfaces, maaking it suitable for a wide range of applica tion scenarios.
Specification
| Model | AL-SK25KAP | AL-SU25KAP | |
| Display Technology | DLPTM chipx1, DLPTM projection system | ||
| Panel Size | 0.8"DMD | ||
| Resolution | 3,840x2,400 | 1,920x1,200 | |
| Brightness① | 25,000lm/26,000lm (Center) | ||
| Light Source | ALPD® 5.0 RGBX® Full-Color Laser | ||
| Light Source Lifetime② |
2000h |
||
| Contrast③ | Native Contrast: ≥1,600:1 Full On/full Off: ≥100,000:1 | ||

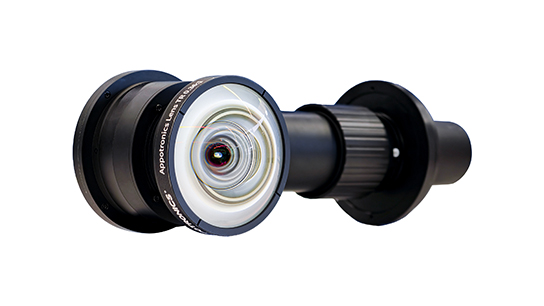

| Optional Lenses | 0.36:1; 0.53~0.63:1; 0.7~0.85:1; 0.85~1.1; 1.14~1.51:1;1.5~2.4:1; 1.69~2.42:1; 2.4~3.8:1; 3.8~6.8:1 | ||
| Blending | Horizontal and vertical edge blending | ||
| Screen Size | 100"~800" | ||
| Geometric Correction | Corner, keystone, curve, multi-point (up to 33x33 points) | ||
| Lens Shift④ | Vertical: +50%, Horizontal: +20%, Motorized | ||
| Signal Interfaces | Input Signal: HDMIx2 (4K/60P); DVI (1,920x1,200/60P); HDBaseET (1,920x1,200/60P); 3D SYNC Signal: 3D SYNC in; 3D SYNC out; IR 3D out Dynamic Contrast SYNC Signal: MULTI SYNC in, MULTI SYNC cbut |
||
| Control Interfaces | Ethernet Port: RJ45 Serial Port: RS232 Infrared Extension Cable Port: Remote IR in/out Debug Port: USB-B |
||
| Other Interfaces | USB Expansion Port: USB-A 12V External Power Supply Port: POWER 12V/1A |
||
| Power Supply | 100~240V AC 50/60Hz | ||
| Power Consumption |
Typical Power⑤ |
AC 100V~120V: 2000W⑥. AC 200V~240V: 2200W | |
| Standby Power⑦ |
0.5W | ||
| Installation | 360° Installation | ||
| Operation Noise⑧ | 47dB (Standard) | ||
| Dimensions⑨ | 625mm×533mm×178mm (LxWXH: 24.6"x 21"×7") | ||
| Weight⑩ | 35kg (77.2lbs) | ||
| Temperature⑪ | 0~40°C (32°F~104°F) | ||
| Storage Temperature | -10~+60°C (14°F~140°F) | ||
| Humidity | 10%~80% RH (No Condensation) | ||
|
① Comply with on ISO21118 standard.② Around this time, light output will have decreased by approximately 50%. Actual time may vary according to the operating modes, environment and cother user behaviors.③ When DCI-P3 or BT2020 mode is selected, the brightness will decrease.④ Lens shift support:AL-XL070FR, AL-XL085FR, AL-XL110MA, AL-XL150MA, AI-XL169MA, AL-XL240LA,AL-XL380LA: Vertical +50%, Horizontal +20%.AL-XL053FR: Vertical +20%, Horizontal +8%. AL-XL036FR: TBD.⑤ Measuring conditions: Operating on the Standard modeel, ambient temperature 25°C,100~240V AC, 50/60 Hz.⑥ The maximum value of light output is limited to 20,000Im or less when using the projector with AC 100V to 120V.⑦ Measuring conditions: In the Power Settings menu, select Power Standby ECO option, then turn off the projector into standby mode.⑧ The test data was obtained at the ambient temperature of 25°C.⑨ Structural protrusions and lens not included.⑩ Lens not included.⑪ Light source brightness may decrease depending on anmbient temperature. When projector is operating at high temperature or at high altitude, brightness will decreaase correspondingly. Light output of projector will be reduced to 50% if ambient temperature exceeds 40°C (104°F) |
|||
