I. Introduction
Located in Wuxi, Yangshan Scenic Area launched a night tourism upgrade project aimed at transforming the natural mountain landscape into a large venue immersive nighttime visual landmark.
Unlike conventional scenic lighting installations, this project was developed as a large venue professional projection system designed for:
ultra-long-distance projection
large-area image fusion
outdoor system stability
centralized multi-channel control
scalable visual content operation
For this project, Appotronics Professional Display was responsible for system design and full deployment.
II. Why Mountain Projection Requires a System-Level Approach

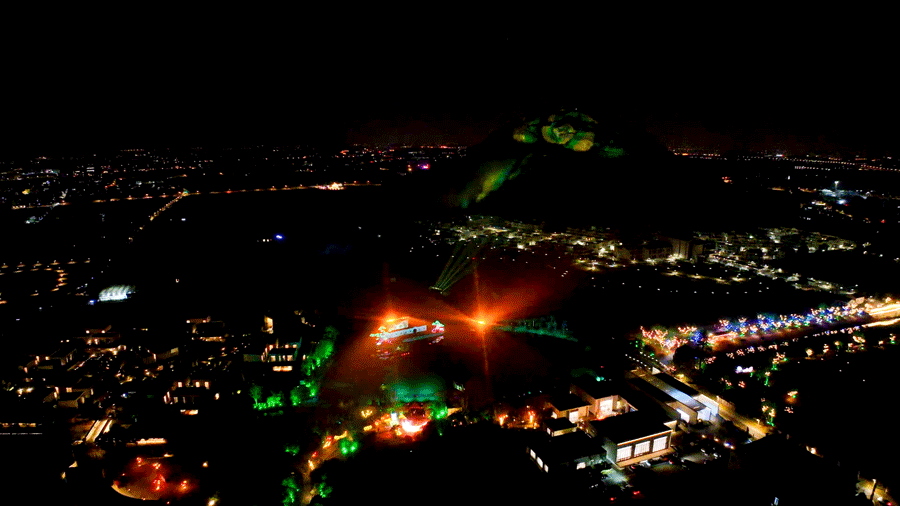

Compared with architectural projection mapping, mountain projection introduces significantly higher system complexity due to natural terrain conditions and extreme operational scale.
The Yangshan project required a system-level projection design approach, addressing three core challenges:
1. Ultra-Long Projection Distance (700m+)
The projection distance exceeded 700 meters, placing strict requirements on:
long-throw optical performance
brightness efficiency over distance
atmospheric light attenuation control
image sharpness retention
At this scale, optical design becomes a critical system constraint rather than a component-level consideration.
It forms a gigantic immersive panoramic screen covering a total area of 19,600 square meters.
2. Large-Scale Projection Surface (350m × 56m)
After multi-projector edge blending, the final image reached:
350 meters wide
56 meters high
It forms a gigantic immersive panoramic screen covering a total area of 19,600 square meters.
3. Maintaining visual consistency across irregular natural terrain required:
precise geometric correction
multi-channel edge blending
terrain-adaptive mapping calibration
synchronized image processing across all channels
4. Outdoor Operational Stability
The system was designed for long-term outdoor operation under variable environmental conditions, requiring:
stable system synchronization
controlled calibration drift
reliable optical performance
simplified maintenance architecture
III. Core Projection System Design
1. Main Mountain Projection System
The primary installation utilized:
15 units Appotonics AL-T series large venue laser projectors
3DLP, R&B Laser Phosophy, 34000lm brightness
long-throw front projection configuration
horizontal multi-channel edge blending architecture
Instead of relying on brightness stacking strategies, the system adopted a full-channel fusion architecture, improving:
brightness utilization efficiency
image consistency across terrain
long-term calibration stability
operational maintainability
Long-Throw Optical Design Strategy
Long-throw optics played a key role in system performance.
This optical design helped:
concentrate effective brightness over long distances
improve image penetration in outdoor atmospheric conditions
maintain uniform large-scale visual consistency
reduce dispersion across irregular surfaces
This was essential for ensuring stable image quality across the full 350-meter projection width.

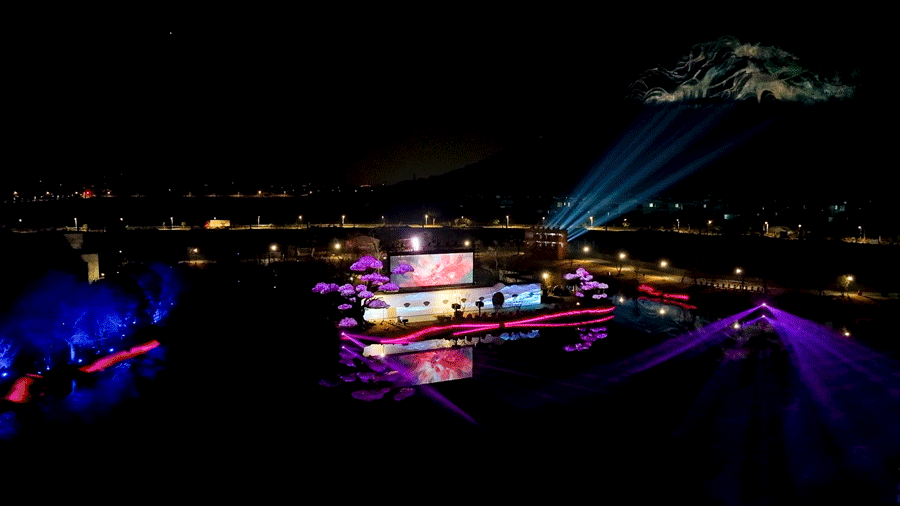

2. Auxiliary Projection Systems
To create a complete immersive visitor experience, multiple auxiliary projection systems were integrated across the scenic area.

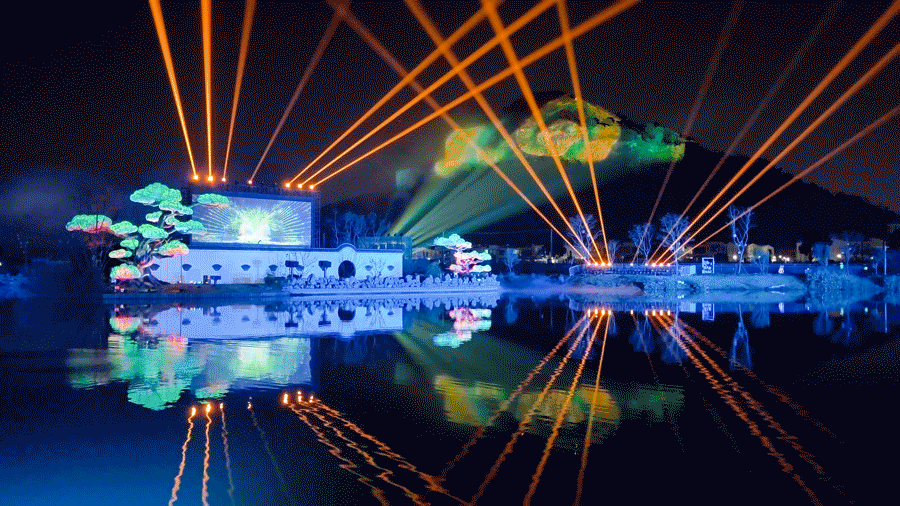

2.1 The Upper Mesh Screen Projection System
This water-adjacent projection system enhanced spatial layering between:
natural water surfaces
architectural elements
projection content
System configuration:
2 Unit AL-S Series professional laser projectors
15,000 lumens per unit
blended projection coverage approx. 15m × 5m
2.2 The Lower Wall Projection
Installed along key pedestrian circulation routes, this system provided visual transitions and environmental atmosphere enhancement.
System configuration:
4 Units AL-D series professional high brighness installation laser projectors
7,500 lumens per unit
blended projection coverage approx. 32m × 3m

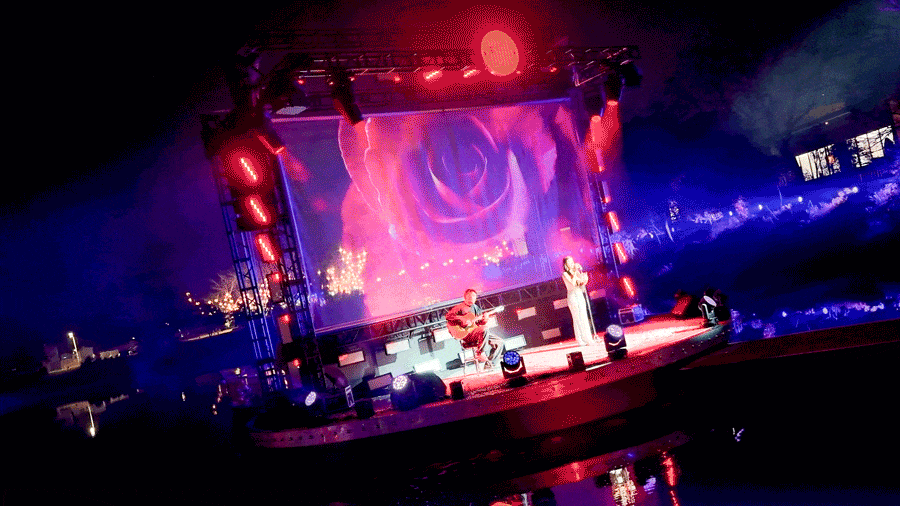

2.3 Rear-Projection Gauze Stage System
A flexible performance-oriented projection system supporting live shows and cultural events.
System configuration:
1 Appotronics laser projector
10,000 brightness
rear projection setup
projection coverage approx. 8m × 5m
3. Centralized System Architecture
The entire installation adopted a centralized projection control architecture, supporting:
multi-channel synchronization
unified playback management
centralized edge blending control
fiber-based long-distance signal transmission
4. Operational Management System
The system also integrated:
real-time equipment monitoring
scheduled power management
fault detection and alerts
operational diagnostics
This architecture improves long-term system reliability and reduces maintenance complexity in large-scale outdoor deployments.
5. Engineering Deployment Workflow
The project followed a structured system engineering workflow:
projection platform and structural construction
system installation and optical alignment
geometric correction and multi-channel fusion calibration
integrated testing with lighting and audio systems
staged trial operation and optimization
This ensured deployment precision under complex environmental conditions.
Ⅳ. Project Outcome
The completed system transformed the mountain into the primary nighttime visual landmark of the scenic area.
More importantly, the project demonstrates how large-scale professional projection systems can function as:
long-term visual infrastructure for scenic destinations
scalable immersive content platforms
reusable digital tourism assets
system-level nighttime experience frameworks
This approach provides a repeatable model for future large-scale outdoor projection deployments.
Ⅴ. Conclusion
The Yangshan Night Tourism project demonstrates the convergence of projection system engineering, immersive visual technology, and cultural tourism development.
By combining:
long-throw optical system design
large-scale multi-channel fusion
centralized system architecture
outdoor operational engineering
Appotronics Professional Display delivered a scalable professional projection solution designed for complex landscape environments.
